View DetailsScrew Plug Heaters
Smaller version of an immersion heater with the flange replaced by a threaded plug, screwed directly into a tank wall, vessel, or process line.

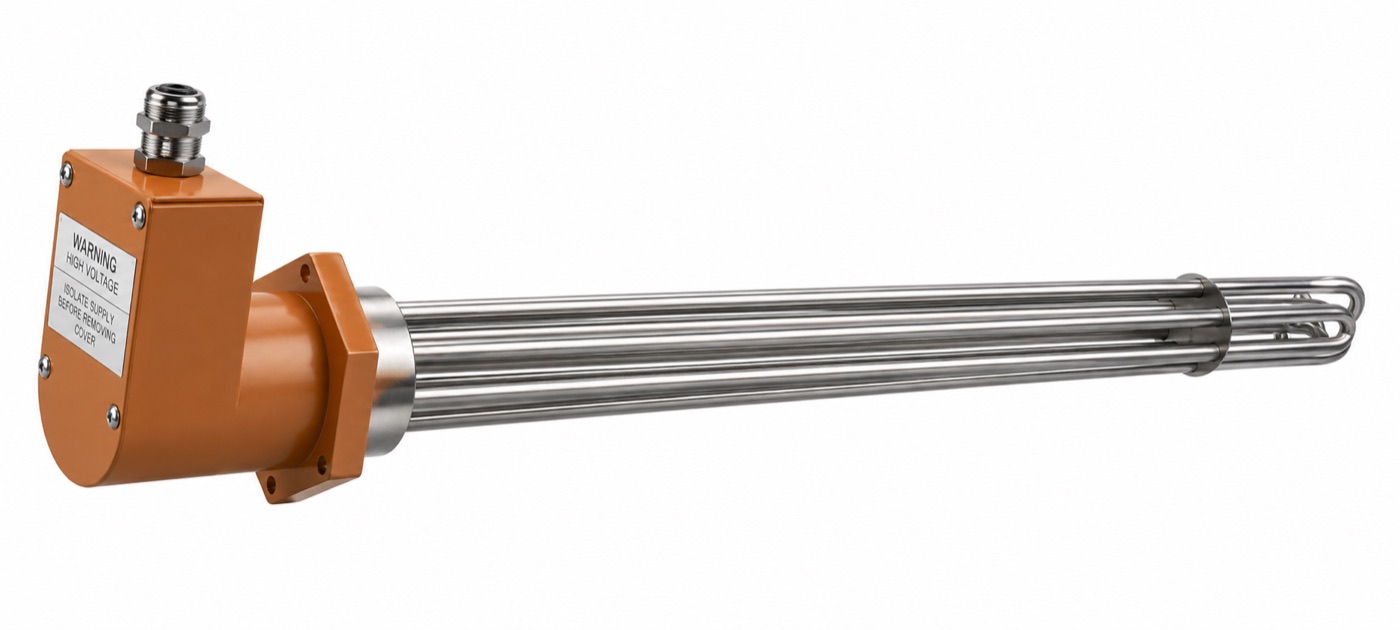

Screw Plug Heaters are smaller versions of Immersion Heaters in which the heater flange is replaced with a Threaded Plug. Single or multiple tubular heating elements are fitted into a threaded hexagonal head, which is then screwed directly through a threaded coupling in the tank wall, vessel, or process line.
Screw plug heaters are an easy way to heat solutions in smaller containers that may or may not require automatic temperature control. They can be installed horizontally or vertically, and are compatible with both single-phase and three-phase power supply.
Specifications
Technical Specifications
| Sheath Material | SS, Alloy 600 series, Alloy 800 series, Hastelloy, Titanium, Copper etc. |
| Rating | 0.1 kW to 50 kW |
| Screw Plug Material | Cast Iron (CI), Carbon Steel, Brass, SS etc. |
| Screw Plug Fittings | 1", 1.1/4", 1.1/2", 2", 2.1/2", 3" (BSP/NPT) or equivalent metric threads |
| Voltage | 120 to 690V AC, single-phase or three-phase |
| Terminal Enclosure | Safe / Hazardous area enclosure |
| Temperature Control | Thermostat / RTD / Thermocouple |
