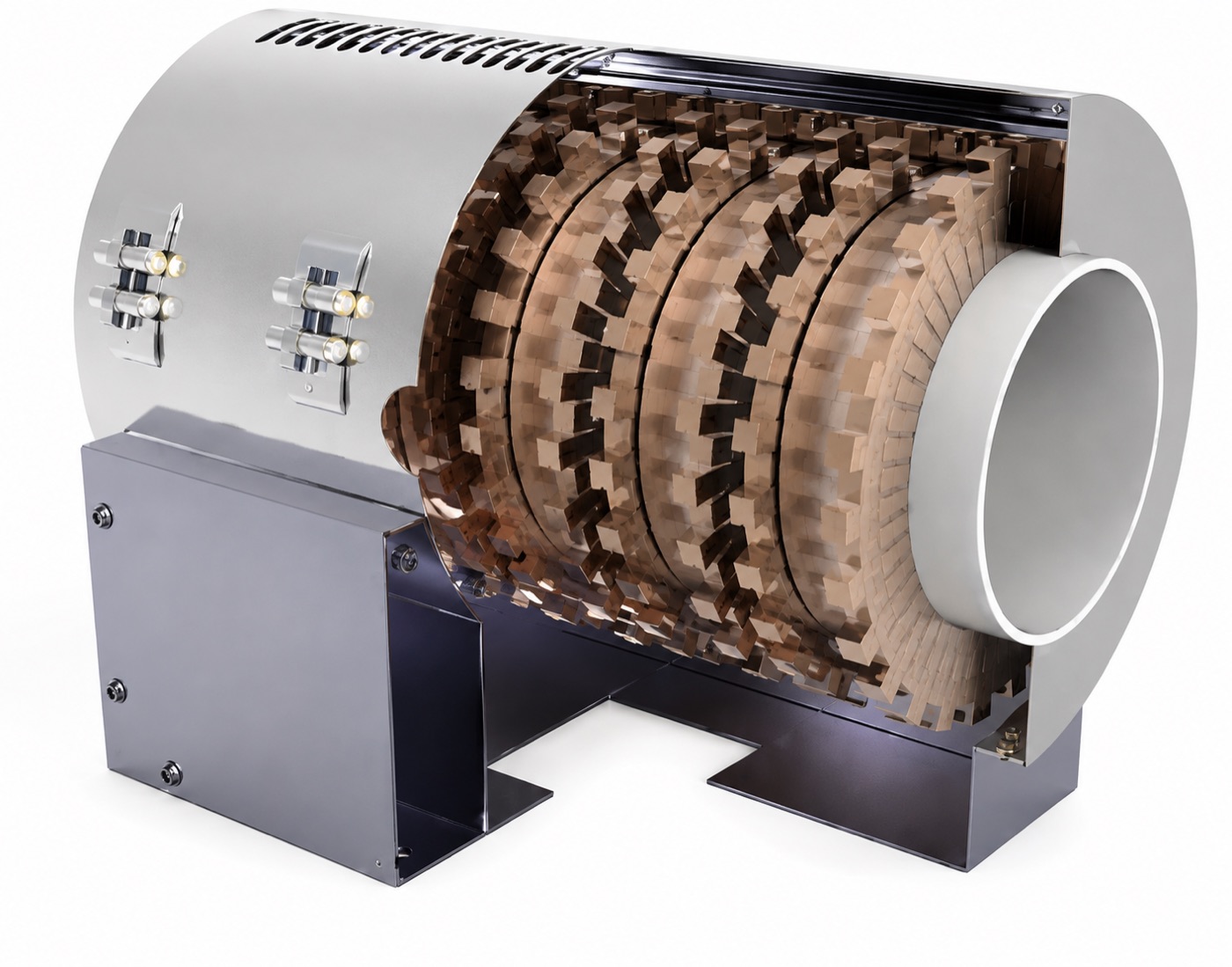

View DetailsCeramic Band Heaters & Blower Assembly
Nickel-chrome wire embedded in interlocking ceramic tiles ('knuckles') for medium-to-high temperature clamp-on barrel heating.

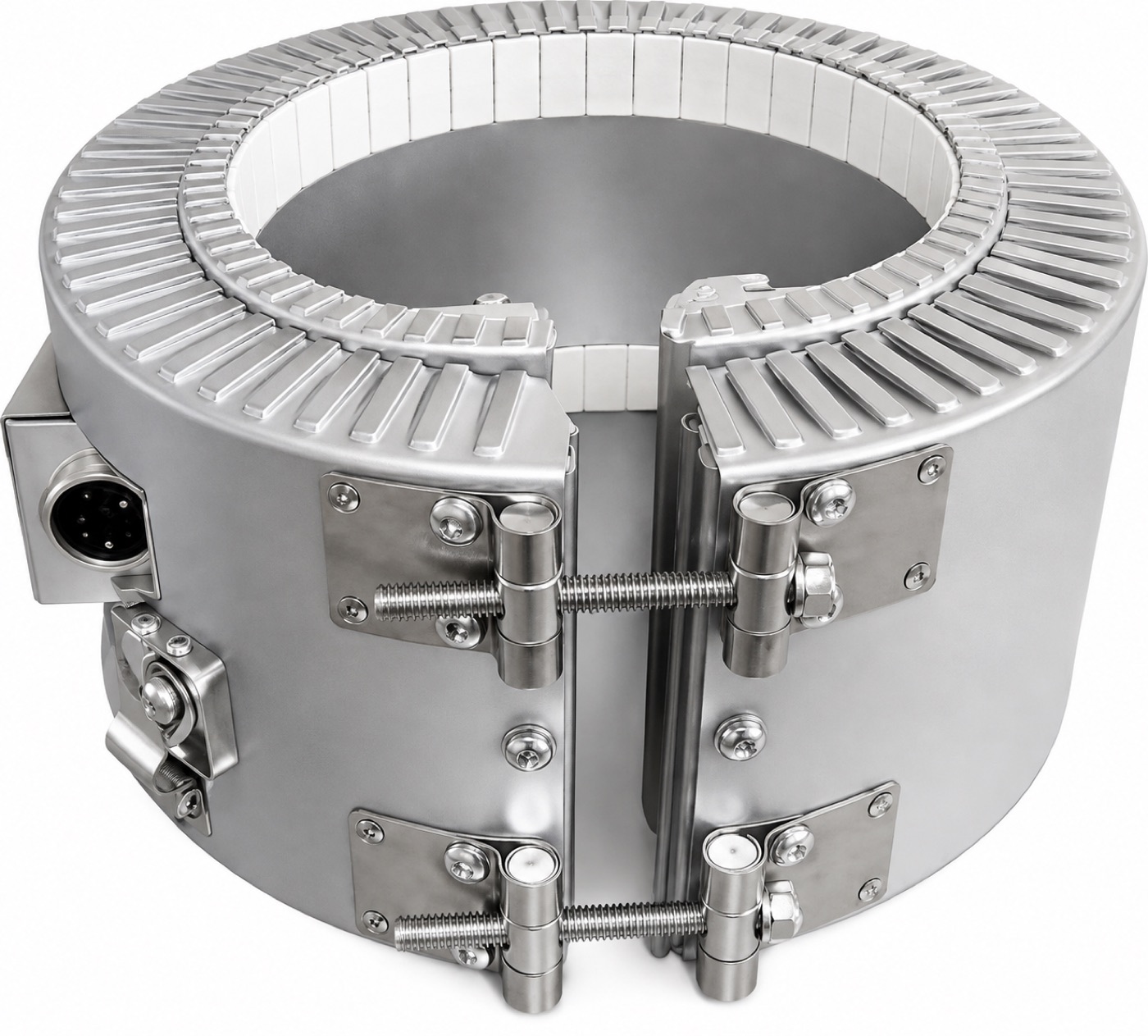

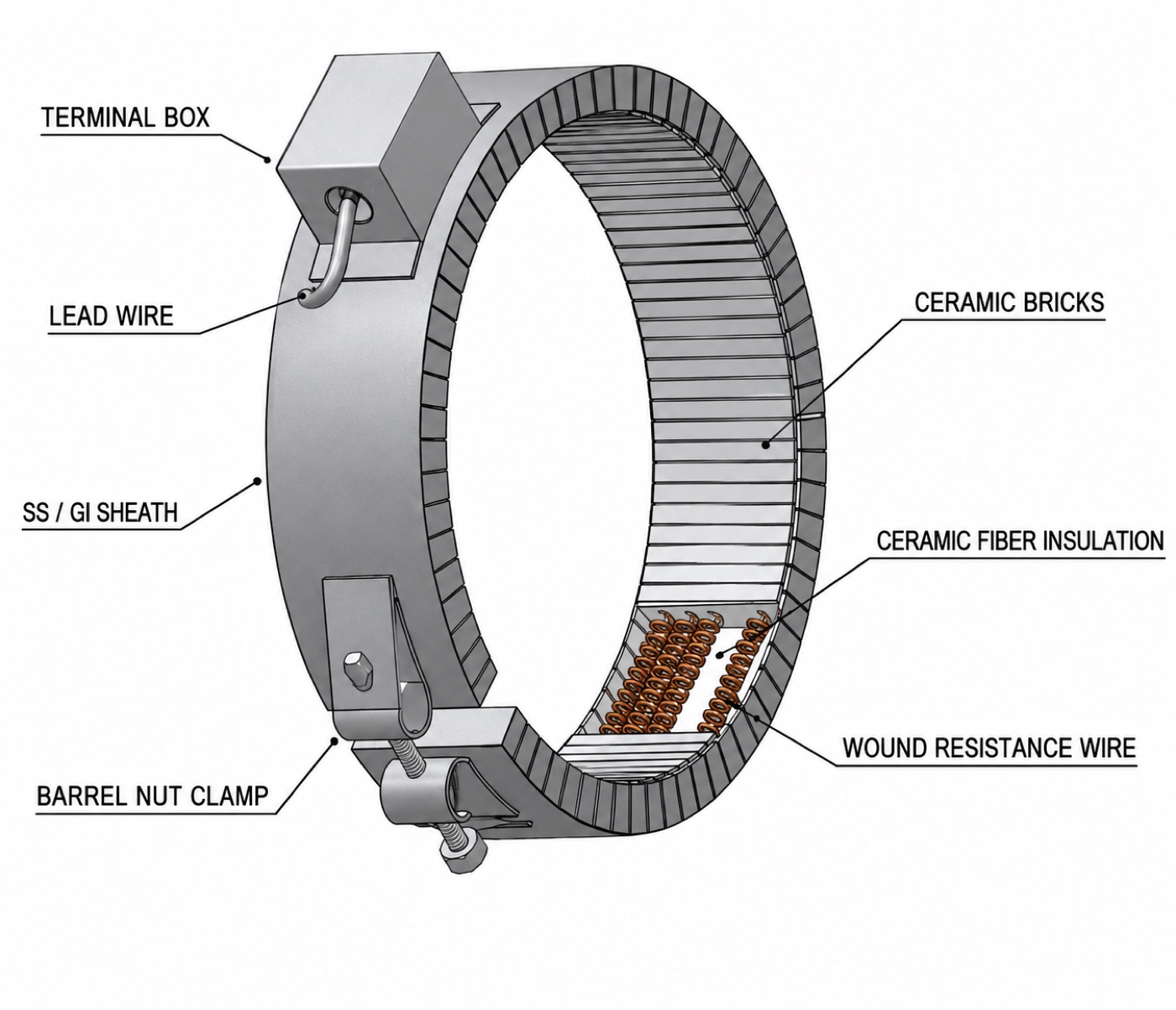

Ceramic band heaters are medium-to-high temperature heaters with a maximum working temperature of 648°C. Nickel-chrome wire is embedded in a flexible outer wall made of special interlocking ceramic tiles (knuckles) assembled like a brick wall. The design radiates energy into the barrel as well as conducting energy through contact — fit is not as critical as with other band heaters.
Specifications
Technical Specifications
| Sheath Material | Aluminum-coated sheath (standard, oxidation resistant) or SS304 stainless steel |
| Insulation | High purity ceramic fiber blanket |
| Ceramic Knuckles | High purity alumina ceramic for element winding & dielectric strength |
| Watt Density | Up to 45 W/in² |
| Watt Rating | 500W to 5000W |
| Voltage | 120V & 240V (1-phase, 2-phase, 3-phase) |
| Dimensions | Width: 25mm–250mm | Diameter: 40mm min to 1200mm (in 3 parts) |
