View DetailsMica Band Heaters & Mica Strip Heaters
Clamp-on mica band heaters for flat/cylinder surfaces plus mica strip heaters rated up to 650°C.
Mica band heaters clamp around and transfer heat to flat and cylinder-shaped surfaces, and are extensively used in injection, extrusion, blow molding, and pipe heating applications.

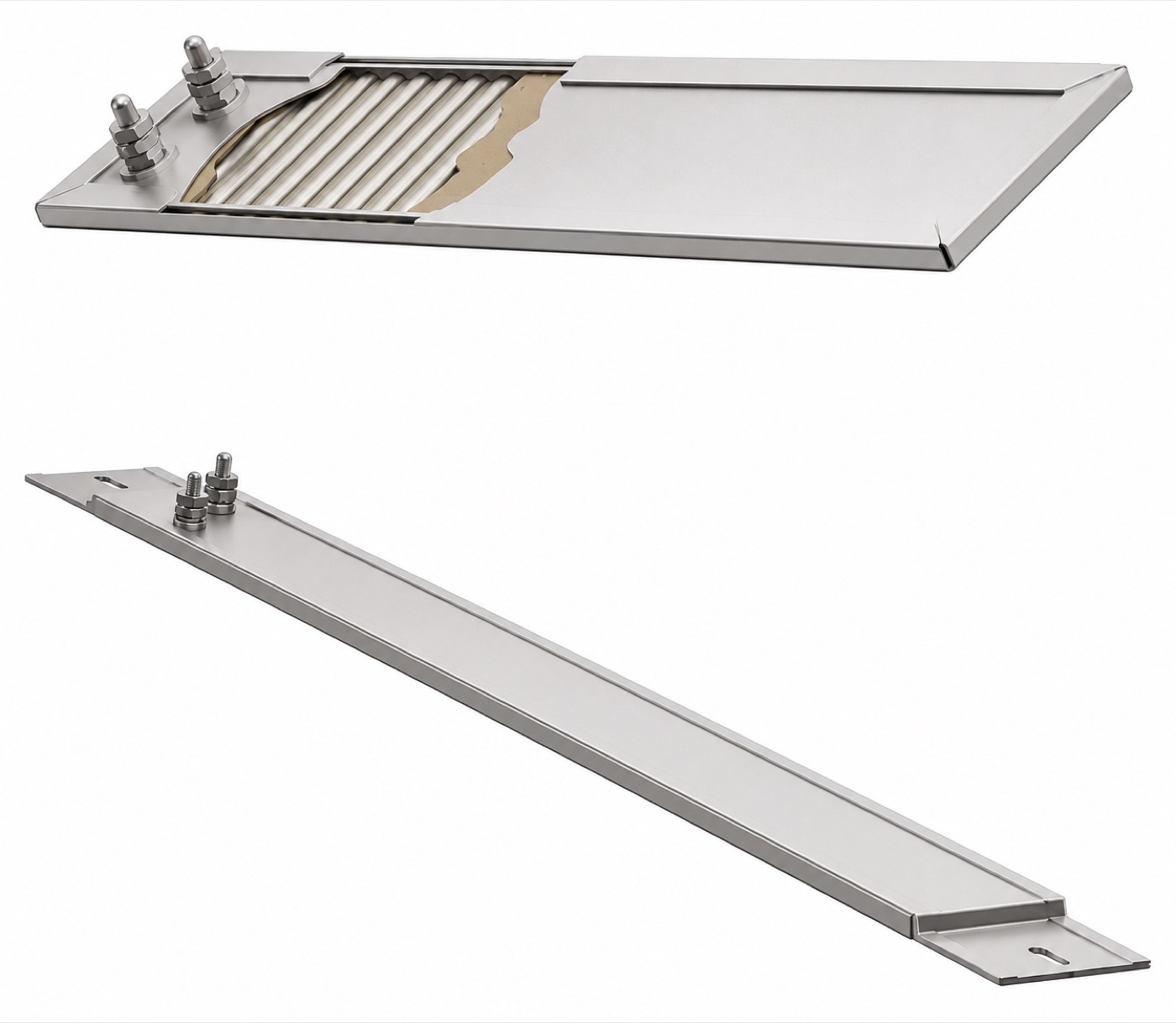

Mica Strip Heaters are composed of nickel chromium resistance ribbon uniformly wound on mica strip and encased in a stainless steel sheath.
Specifications
Technical Specifications
| Mica Strip — Max Temperature | 650°C |
| Mica Strip — Max Watt Density | 45 W/sq.cm |
| Mica Strip — Power Supply | Up to 480 VAC |
Reference Data
Mica Band Heater — Maximum Allowable Watt Density (W/sq.inch)
| Cylinder Temp | 94°C | 150°C | 205°C | 260°C | 315°C | 370°C | 425°C |
|---|---|---|---|---|---|---|---|
| 1.5 - 3" I.D. | 52 | 51 | 50 | 46 | 41 | 37 | 29 |
| 3 - 10" I.D. | 47 | 46 | 45 | 42 | 38 | 33 | 25 |
| 10" and > I.D. | 41 | 40 | 39 | 36 | 31 | 27 | 20 |
